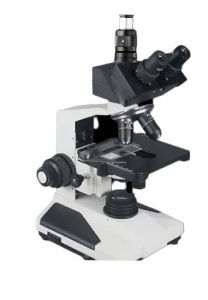

Trinocular Microscope

Trinocular Microscope

A trinocular microscope is a professional optical instrument designed with two eyepieces and an additional camera port, allowing simultaneous observation and digital imaging. At our company, we are recognized as the trusted Trinocular Microscope Manufacturers in Chennai. We offer high-quality microscopes that combine precision, reliability, and advanced functionality. We provide the best microscopes for schools, colleges, research laboratories, medical institutions, and industrial labs that require accurate observation along with digital documentation capabilities.
Significance of Trinocular Microscopes

● Dual Eyepiece + Camera Port: The Dual Eyepiece allows one to view the image
comfortably with both eyes and record images or videos to be analyzed and stored.
● High-Precision Magnification: Provides the capability of a clear and sharp view of
both biological specimens and clinical samples, as well as of industrial materials, to
be studied in detail.
● Ergonomic Design: Lessens strain on the eyes and enables the user to have long-term
observations without any inconvenience.
● Long Life: Built to be used in laboratory, educational, and industrial settings, using
less than regular wear.
● Professional Solution: Advanced microscopy features are offered at a very affordable
cost, making it the ideal choice in case the institutions and labs are interested in
reliability and quality.

Applications

● Further school and college educational use.

● Scientific laboratory work and research.
● Observation and documentation of the biological and clinical specimens.
● Timely checkups and test results.
● Quality checking and inspection in industries.

Why Choose Us?
Being one of the Trinocular Microscope Manufacturers in Chennai, our main aim is the development of instruments that are accurate, durable, and simple to operate. All the microscopes are subjected to rigorous quality inspections to ensure that they perform well over time and are accurate. Moreover, we offer professional advice, technical assistance, and quality after-sales services to enable the institutions to get the best out of their microscopy equipment.
Enabling Studies, Training, and Documentation
Our trinocular microscopes are also meant to promote learning, assist in making the right observations, and offer professional-quality imaging. With our selection of microscopes, educational institutions, medical laboratories, and research centers can obtain quality tools that make the complicated studies easier, as well as the possibility to document the results in detail, which makes it an invaluable instrument in modern scientific work.
Advance Trinocular Research Microscope
Cat No LI- JXi 500

Specification

  • Illumination
  • Koehler Illumination,Super Bright White Led Cold Light,Optional 6v 30w Halogen Lamp
  • Eyepieces
  • Focussable Eyepiece Wf 10x Fn 22 Paired With Eye Guards,Anti-fungus Treated
  • Condenser
  • Movable Abbe Condenser,With Aspheric Lens Na 1.25,Daylight Blue Filter & Iris Diaphragm Centrable
  • Optional
  • Swing Out Abbe Condenser      NA 0.9-0.16 Compatible With 4x-100x Available
  • Stand
  • C Shaped Stand With Well-contoured Modular Base,Corrosion Resistant Paint And Heat Resistant Pads
  • Viewing Head
  • Inclined At 30 Degree Rotatable Through 360 Degree With Ipd 55-75 mm. Anti Fungus Treated
  • Coarse Movement Stroke  20 mm
  • Double Layer Graduated Mechanical Rectangular
  • Stage Size         140×132 mm
  • Fine Graduation               2-3 Micron
Trinocular Clinical Microscope
Cat No LI-JXLT

Specification

  • Condenser
  • Movable Abbe Condenser,With Aspheric Lens NA 1.25,Daylight Blue Filter & Iris Diaphragm. Centrable
  • Eyepieces
  • Focussable Eyepiece Wf 10x Fn 22 Paired With Eye Guards,Anti-fungus Treated
  • Illumination
  • Koehler  llumination, Super Bright White Led Cold Light,Optional 6v 20w Halogen Lamp
  • Nosepiece
  • Fully Parafocal Reverse Angle Quadruple Revolving Nosepiece (Ball Bearing Type) With Click Stop
  • Optical System
  • Universal Infinity Corrected Optical System
  • Anti Fungus Treated Objetives   Plan Achromat 4x/0.10, 10x/0.25, 40x(Sl)/0.65 and 100x(Sl,Oil)/1.25
  • Viewing Head
  • Inclined At 30 Degree Rotatable Through 360 Degree With IPD 55-75 mm. Anti Fungus Treated
  • Double Layer Graduated
  • Mechanical Rectangular Stage Size         140×132 mm
Trinocular Research Microscope Prima Plus DG
Cat No LI-Prima Plus DG

Specification

  • Condenser
  • Movable Abbe Condenser,With Aspheric Lens NA 1.25,Daylight Blue Filter & Iris Diaphragm. Centrable
  • Eyepieces
  • Focussable Eyepiece Wf 10x Fn 22 Paired With Eye Guards,Anti-fungus Treated
  • Illumination
  • Koehler Illumination,Super Bright White Led Cold Light,Optional 6v 20w Halogen Lamp
  • Nosepiece
  • Fully Parafocal Reverse Angle Quadruple Revolving Nosepiece (Ball Bearing Type) With Click Stop
  • Optical System
  •  Universal Infinity Corrected Optical System
  • Anti Fungus Treated Objetives
  • Plan Achromat 4x/0.10,10x/0.25,40x(Sl)/0.65 and 100x(Sl,Oil)/ 1.25
  • Viewing Head
  • Inclined At 30 Degree Rotatable Through 360 Degree With IPD 55-75 mm. Anti Fungus Treated
  • Double Layer Graduated Mechanical Rectangular Stage Size         140×132 mm
