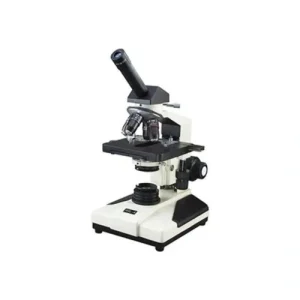

Monocular Microscope

A monocular microscope is an effective and simple optical device that has a single eyepiece, making it a useful tool in education, small-scale laboratory experiments, and routine examinations. We are the high-quality key Monocular Microscopes manufacturers in Chennai, specializing in offering high-quality microscopes that are affordable, durable, and clear. Our microscopes are ideal in schools, colleges, and entry-level laboratories, and also in institutions that demand good microscopy solutions.

Some important characteristics

● Single Eyepiece Design: It is simple to use and see through.
● Correct Magnification: It gives a clear and accurate visualization of biological
specimens, slides, and samples.
● Light and Small: Portable and appropriate to small working areas.
● Durability: Made out of wood that can be used repeatedly in learning and laboratory
settings.
● Cost-Efficient: Cheap entry-level and cost-effective solution with no compromise in
quality.

Applications

● School and college educational uses.
● Rudimentary lab analysis and research.
● Observation of biological specimens.
● Regular sampling and sample analysis.
● Laboratory installations at the entry level.

Why Choose Us?

Since we are a major Monocular Microscope Manufacturer in Chennai, we are oriented towards providing instruments that are accurate, durable, and easy to handle. Our microscopes are rigorously controlled for quality to be reliable and for long performance. Moreover, we offer guidance, support, and after-sales service so that the institutions can maximize the use of their microscopy equipment.

Monocular Pathological Microscope JXL MONO

Cat No LI- JXLM

Specification

Monocular Observation head inclined at 45degree rotatable at 360degree.
Eyepiece- KEOWA WIDE FIELD HKW 10x paired with eye guards.
Achromatic Objectives, anti-fungus treated 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 (Spring Loaded), 100x/NA 1.25 (SL, oil immersion)
Quadruple nosepiece revolves on ball bearing with rubber grip and positive click stop.
Right Hand Mechanical stage size 120mm X 140mm having low positioned co-axial controls on ball bearing.
Spring clip single specimen holderCross X&Y movement 60mm X 80mm.
Focusing – Coaxial coarse and fine knobs reading upto 0.002mm.
Condenser- NA 1.25 fitted with iris diaphragm and blue filter holder.
Illumination- Halogen 6V-20W with variable intensity control or 3W LED lamp.

Monocular Microscope With Coaxial Focusing

Cat No LI-JXL-MoNo

Specification

Monocular Observation head inclined at 45degree rotatable at 360degree.
Eyepiece- KEOWA WIDE FIELD HKW 10x paired with eye guards.
KEOWA AK series Achromatic Objectives, anti-fungus treated
4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 (Spring Loaded), 100x/NA 1.25 (SL, oil immersion)
Quadruple nosepiece revolves on ball bearing with rubber grip and positive click stop.
Right Hand Mechanical stage size 120mm X 140mm having low positioned co-axial controls on ball bearing. Spring clip single specimen holder
Cross X&Y movement 60mm X 80mm.
Focusing – Coaxial coarse and fine knobs reading upto 0.002mm.
Condenser- NA 1.25 fitted with iris diaphragm and blue filter holder.
Illumination- Halogen 6V-20W with variable intensity control or 3W LED lamp

Monocular Microscope Inclined 1500x

Cat No LI-HL-444

Specification

Inclined Monocular Head 45^o rotatable through 360^o with horse shoe shaped base hinged type.
Triple or quadruple revolving nosepiece with positive centering and click stop.
Coarse motion through rack and pinion. Very precise and accurate graduated fine motion reading to 0.002 mm.
Two lens Abbe condenser NA1.25 with iris diaphragm and swing out filter holder, moveable through rack and pinion.
A standard plano-concave mirror 50 mm dia. in fork, replaceable by a substage microscope lamp.
Safety stopper, prevents damage to slide and objectives.
Black stoving finish and hard instrumental chromium finish.
