Metallurgical Microscope

A metallurgical microscope is a special optical microscope that is used to observe and analyse metals, alloys, and other solid substances. It is also better suited to reflected light imaging compared to biological microscopes, which allows researchers and industrial practitioners to study surface structures, grain boundaries, and defects on the surface with a fine degree of precision. As a major Metallurgical Microscope Manufacturer in Chennai, Leads India offers high-quality instruments, which are integrated with high-quality optics, high-quality construction, and easy-to-use features to serve the research and industrial purposes.

High-Resolution Surface Analysis

● Reflected Light Illumination: This is aimed at investigating metallic and opaque samples and does not require thin sections.

● High-Magnification Objectives: Provides the ability to study surface structures, micro-cracks, and grain boundaries in detail.
● Polarizing and Contrast Techniques: This increases the visibility of fine surface features and the anisotropy of the material.

Durable and Ergonomic Design

● A Firm base and a non-portable frame to take accurate pictures during the inspection in industries.
● Regulable stage and fine focusing to accommodate samples of different sizes.
● Ease of viewing to minimize eye strain when taking long observation periods.

Applications in Industries

● Failure analysis and metallurgical research.
● Quality assurance in production and testing materials.
● Microstructure analysis of metals, alloys, and ceramics.
● Material science training educational laboratories.
● Surface inspection in aerospace, automotive, and electronics industries.

High-end Imaging and Reporting

● The Capability of being integrated with digital cameras to capture and record high-resolution pictures.
● Software analysis, measurement, and reporting compatibility.
● Elective phase contrast and polarized light units to study materials better.

Why Choose Leads India?

As reputed metallurgical microscope manufacturers in Chennai, Leads India guarantees the perfect execution of quality control on every microscope manufactured by the company in regard to precision, durability, and reliability. We offer tailor-made solutions such as digital image attachments, integration of cameras, and contrast techniques. We also provide professional advice and training on how to perform optimally with your instruments, and we also provide after-sales services.

Empowering Industry and Research Excellence

Through the selection of our metallurgical microscopes in Chennai, laboratories, universities, and industry plants can have access to accurate and quality materials to analyze materials, improve the results of research, and promote innovation. Leads India provides highly innovative microscopic solutions and solutions that address the changing requirements of materials science and industrial inspection.

Monocular Metallurgical Microscope

Cat No LI- MHL-45

Specification

Illumination Bright Field Vertical Illuminator With Halogen Lamp 6v-20 W Works On Variable Transformer
Observation Head Monocular Observation Head Inclined At 45 Degree Rotatable Through 360 Degree
Stage Graduated Rectangular Mechanical Stage Of Size 120 x 140 mm
Stand Rigid & Heavy Single Mold Aluminum Die-cast Stand
Condenser Focusable Abbe Two Lens Type Na 1.25 Condenser
Focusing Co-axial Coarse And Fine Focussing On Ball Drive System For Smooth Operation
Nose Piece Quadruple Revolving Nose Piece With Positive Click Stops And Rubber Grip
Objectives
KEOWA M10 x,M20 x & M40 x (SL) Anti-fungal.

Binocular Metallurgical Microscope

Cat No LI- MHL-46

Specification

Eyepiece KEOWA WF10 x & WF15 x Anti-fungal, Lockable
Focusing Co-axial Coarse And Fine Focussing On Ball Drive System For Smooth Operation
Graduated Rectangular Mechanical Stage of Size 120 x 140 mm Having Low Positioned Co-axial Controls
Illumination
Bright Field Vertical Illuminator With Halogen Lamp 6 V – 20 W Works On Variable Transformer
Nosepiece
Quadruple Revolving Nosepiece With Positive Click Stops And Rubber Grip
Objectives KEOWA M10 x, M20 x & M40 x (SL) Anti-fungal
Observation Head
Inclined At 45 Degree Rotatable Through 360 Degree
Stand Rigid & Heavy Single Mold Aluminum Die-cast Stand
Condenser Focusable Abbe Two Lens Type Na 1.25 Condenser

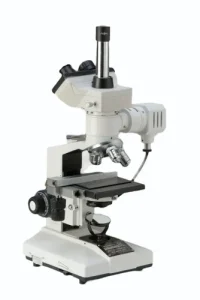

Trinocular Metallurgical Microscopes

Cat No LI-MHL-47

Specification

With Trinocular Observation Head assembled from finest Prisms, rotatable through 360⁰
With adjustable interpupillary distance and diopeterical focussing arrangement.
Bright field vertical illuminator with Halogen Lamp 6V-20W works on variable transformer
With adjustable field and aperture Iris diaphragm with slots for dropping coloured filters.
Provides excellent bright field in incident illumination of opaque or semi-opaque specimens.
Triple revolving nosepiece with positive click stops, Co-axial Focussing System and graduated mechanical stage.
Complete with following optics in plywood cabinet day light blue and green Filters & dust cover.

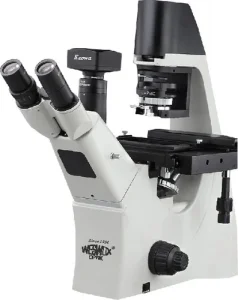

Inverted Metallurgical Microscope

Cat No LI-MHL-50

Specifcation

Mechanical Body
Single mold sturdy stand with anti rust materials.
Extended base for better stability.
Observation Head:
Phototube for microphotography.
Diopter adjustment ring on ocular provides correction for eye acuity.
Nose piece:
Reverse angle quadruple nosepiece revolves on ball bearing with positive indexing.
Soft rubber knurled grip on nosepiece.
Mechanical Stage:
Supported on ball bearing guideways and having low positioned co-axial controls for stage movement.
Hand rests provided on both sides.
Focusing:
Co-axial focusing control with ball bearing guideways & large knobs, pre focusing lever & tension adjustment ring.
The slow motion has 1 DIV = 0.002 mm.
