Inverted Microscopes
Inverted Microscopes

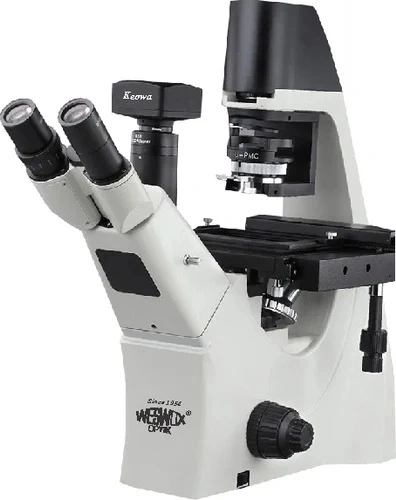

An inverted microscope is an optical instrument that is engineered on a very fine scale, with
the source of light and the condenser being placed above the stage and the objectives below
the specimen. This inverted setup enables investigators to view cells and samples in
containers such as flasks or petri dishes without any slide preparation. Being one of the
reputable Inverted Microscope Manufacturers in Chennai, Leads India is a company that
produces modern, easy-to-use devices that are characterized by high clarity, easy operation,
and durability. The applications that these microscopes are utilized for include cell culture,
tissue studies, live-cell imaging, and industrial analysis, among others.
Advanced Optical Engineering
We have the inverted microscopes with high precision optics that produce sharp and bright
images, even with living cells or large samples. The light system offers good and consistent
light, and the contrasts can be adjusted to improve the view of clear specimens.
Convenience Research
These microscopes are ergonomically designed to work long hours and have easy access to
place samples and observe. It is a good fit in the lab where the culture dishes or flasks have to
be worked with due to their stable base, fine focusing control, and large working range.
Steady Build and Long-lasting Service
All the microscopes are made with high-quality materials along with high-quality mechanical
components. The anti-vibration frame and corrosion-resistant body are also used to provide a
consistent performance despite heavy usage in research or industrial settings.
Areas of Utilization
● Cell and tissue culture.
● Microbiological and biological research.
● Inspection and quality control of industrial materials.
● Pharmaceutical and medical research.
● Higher educational instruction and performance.
Being a major inverted microscope manufacturers in Chennai, Leads India focuses on
quality, performance, and customer satisfaction. All microscopes are highly inspected before
delivery. Our other custom products are digital imaging attachments, camera integration,
phase contrast modules, and training, support, and maintenance services.
Driving Research and Innovation using Inverted Microscopes
Inverted microscopes made by Leads India have the power to study living systems, aided by
unprecedented precision in laboratories, universities, and industrial research centers. With our
decision to select our inverted microscope in Chennai, customers are getting a high-quality
tool that is reliable and of high quality, which improves scientific discovery, reliability in
observations, and facilitates high-quality research requirements.
Specification
- STAND:
- Large and sturdy base provides stability to the microscope and houses the solid state transformer working on 6V-20W Halogen Lamp.
- OBSERVATION HEAD:
- Sliding Trinocular observation head assembled from finest prisms in 45o inclined with eye point position 320mm raised above the desk Surface for greater comfort to the observer. It is interchangeable with straight tube.
- EYEPIECE:
- KEOWA HKW Wide Field 10x/18mm (Paired). Centering Telescope 10x.
- NOSEPIECE: Quadruple revolving turret nosepiece with positive click stops.
- OBJECTIVES
- anti-fungal, anti-resistant coating): KEOWA achromatic objective 4x, 10x, LWD-20x & LWD-40x (SL). Specially designed perfect flat-field objectives with long working distance (LWD) corrected for bottom thickness of bottles, flasks or chambers.
- STAGE: Large mechanical stage 170mm x 140mm with stage clips.
- FOCUSING: Two large focus control knobs located low down at a convenient position assure accurate focusing. The backlash free Rack and Pinion mechanism has 18mm range. Tension is instantly adjustable. Highly sensitive reading to .002mm is provided.
- CONDENSER: Focusable condenser lens with iris diaphragm, filter carrier, is mounted on a pole on which it can be positioned up or down to accommodate any type of culture vessel in a vertical range of 140mm working distance of condenser lens is 23mm.
- ILLUMINATION: Brilliant illumination is provided by a high intensity 6V-20W Halogen Lamp Illuminator, powered from a base built in variable intensity controlled transformer.
Specification
- Trinocular Tube, Interpupillary distance 52-75mm,
- 30degree inclined, Trinocular light is split 20/80 by a high quality
- prism, diopter adjustable(For WF10X/22mm eyepieces)
- Eyepiece WF10X/20mm Plan Eyepiece, High eye-point up to 21mm
- Centering Telescope 16X/13mm Eyepiece
- WF10X/22mm Plan Eyepiece, High eye-point up to 21mm
- Objective 4X,10X,20X,40X,60X Infinity Long WD Plan Objectives
- Stage Fixed Stage, 240mmX180mm
- Drop specimen holder(minuscule 110)
- Specimen holder
- Mechanical Stage, 180mmx155mm; movement range: 80mmx50mm; with low-positioned X/Y coaxial control knob.
- Nosepiece Quintuple Revolving Nosepiece
- Condensor Ultra long WD Condenser
- PH Slide Phase-contrast Slide
- Filter Filter Holder Blue, Green, Yellow filter(minuscule 34)
- CCD Adapter 0.5X C-Mount , 1X C-Mount 0.25X C-Mount
- FLUORESCENCE ILLUMINATION WITH 3-6 FLUORESCENCE FILTERS (B, G, U, UV).
Specification
- ANTI FUGUS PROTECTION:
- Anti-fungal anti-bacterial coated (multi-layered hard coated).
- ILLUMINATION:
- 3W S LED illumination Life 60,000 hrs, equivalent to 50W Halogen.
- VIEWING HEAD:
- Sidentopf Binocular inclined at 45degree, Sidentopf Head, IPD from 48-75, additional side camera port with splitting ratio 100:0, 50:50. 0.5x C-Mount Reduction (Relay) lens for microscopic camera attachment.
- NOSE PIECE:
- Precise Quintuple revolving
One Nosepiece. - EYEPIECES:
- Paired, High Eye point WF 10X, FOV-22mm with diopter adjustment on both eyepiece (+5mm).
- RECTANGULAR STAGE:
- Fixed Size 200(X) × 250 (Y) mm,
- Attachable Mechanical Stage : 130 (X) × 80 (Y) mm,
- OBJECTIVES:
- LWD4X, N.A. 0.13, W.D. 22mm, SEMI APO Phase objectives LWD 10X, Phase, N.A. 0.40, W.D. 3.1mm, SAPO, Infinite, LWD 20X, Phase, N.A. 0.75, W.D. 0.6mm, SAPO, Infinite.
- Hoffman Modulation Contrast Special designed Objectives 10x, 20x & 40x with Hoffman Modulation Condenser for observation of thick samples with both glass and plastic holders.
- Relief 3D Contrast 10x, 20x, 40x Objectives with Universal Emboss contrast slide 10x,20x & 40x .
