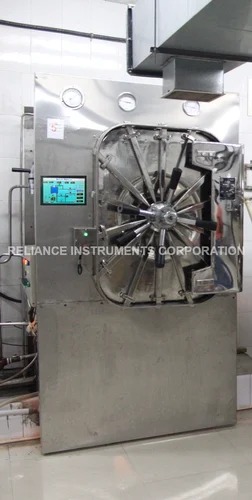

Horizontal Rectangular Autoclave

Horizontal rectangular autoclaves are designed for laboratories, hospitals, and pharmaceutical plants with large numbers of instruments, glassware, and materials. Their rectangular shape ensures uniform heat distribution and high-capacity sterilization. Precision, durability, and safety are key at Leads India, a renowned Horizontal Rectangular Autoclave Manufacturers in Chennai, ensuring every sterilization cycle provides accurate results.

High-Capacity Sterilization

● Large Rectangular Chamber: Houses greater loads of instruments and materials.
● Even Distribution of Heat: Guarantees full sterilization of all surfaces.
● Minimized Cycle Times: Reduces waiting time without compromising quality.

Advanced Control Systems

● Digital Temperature & Pressure Control: Microprocessor-based for precise sterilization.
● Real-Time Monitoring: Ensures safe operation.
● Pre-Programmed Sterilization Modes: Simplifies selection for different load types.

User-Friendly Design

● Ergonomic Door and Handles: Make loading and unloading easy.
● Easy Control Board: Clear display of cycle parameters.
● Space-Saving Design: Small footprint suitable for labs and hospitals.

Safety and Durability

● Pressure Safety Valves: Prevent overpressure accidents.
● Automatic Safety Lock: Ensures secure doors during operation.
● Rough Stainless-Steel Construction: Corrosion-resistant and durable.

Applications in Industries

● Hospitals & Clinics: Sterilization of surgical equipment and linens.
● Pharmaceutical Labs: Media, glassware, and packaging materials sterilization.
● Research and Educational Institutions: Sterilization of lab tests and demonstration work.
● Biotech Facilities: Maintains aseptic and contamination-free procedures.

Designed to Achieve Stable Performance

Leads India offers horizontal rectangular autoclaves with customizable features, high reliability, and excellent after-sales service, making us a trusted Horizontal Rectangular Autoclave Manufacturers in Chennai.

Specification

Type Of Sterilizer Steam Sterilizer
Material Stainless Steel
Shape Horizontal
Inner Chamber SS 316
Steam Jacket Material SS 304
Pressure Range (psi) 17-33 psi
Capacity 180-20000 litres
Insulation Wall Triple Wall
Mount Type Floor Mounted Autoclave
Temperature Range 121 -134 Degree Celsius
Door: Single door with Radial locking/ Sliding Door system
Mode of control: With a multiport valve / Automatic Optional
Pre-vacuum and Post vacuum: To eliminate air packs and ensure effective sterilization.
Water protection: In the event of low water the supply to the heaters is discontinued automatically and visually indicated in the control panel.
Pressure switch: An automatic pressure switches adjustable type is provided to set the required pressure.
Vacuum drying: An effective vacuum drying is caused with powerful ejector and vacuum breaker which draws air from the atmosphere. It is filtered, pre-heated(sterilized) and finally enters the working chamber for effective drying.
Water Gauge glass: To note down the level of water glass tube with gauge is provided.
Gasket: Silicon Expansion type
The sequence of Automatic operation includes the following:
Automatic water filling for the steam generator
Leak test for required time and results with alarm will be displayed and data logged.
Bowie- disk test
Spore-test results from approved lab submitted
Pulsing ( vacuuming, purging and pre-heating)
Sterilization with temp and balance time displayed and data logged
Exhaustion appropriate to liquid, instruments and fabric cycles.
Final cooling with admission of filtered air (0.01 Micron)
Sterilization completes with F.O values Displayed and data’s logged.
