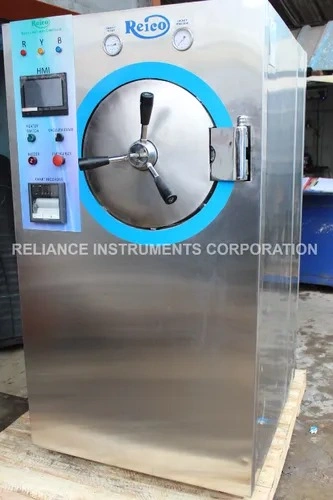

Horizontal Cylindrical Autoclave

Horizontal cylindrical autoclaves are large-volume sterilizers for hospitals, laboratories, pharmaceutical factories, and research organizations. The cylindrical design ensures uniform heat and pressure distribution, making them ideal for sterilizing instruments, glassware, media, and packaging materials. Unlike benchtop models, these can handle large loads efficiently. Leads India, a well-known Horizontal Cylindrical Autoclave Manufacturers in Chennai, provides autoclaves that are precise, safe, durable, and reliable for every sterilization cycle.

High-tech Control and User-Friendly Design

Our horizontal cylindrical autoclaves have microprocessor-controlled systems to regulate temperature, pressure, and sterilization cycles. The digital interface ensures easy operation, real-time tracking, and notifications for safety compliance. The cylindrical chamber is made from high-quality stainless steel for long-lasting performance and corrosion resistance.

Key Features:
● High-Capacity Cylindrical Chamber: Handles large amounts of equipment and
supplies.
● Uniform Sterilization: Ensures complete sterilization of all surfaces.
● Microprocessor-Controlled Cycles: Accurate control of temperature and pressure.
● Automatic Safety Mechanisms: Includes pressure release valves and safety locks.
● User-Friendly Design: Ergonomic doors, handles, and a clear display panel.

Industrial Uses

● Hospitals & Clinics: Sterilizes medical equipment, linens, and surgical instruments.
● Pharmaceutical Labs: Sterilizes vials, culture media, and packaging materials.
● Biotech Facilities: Safe sterilization for culture preparation and experimental setups.
● Research & Educational Institutions: Provides contamination-free environments
for lab experiments.

Trusted Performance and Reliability

Leads India ensures that every horizontal cylindrical autoclave is designed for efficiency, reliability, and safety, with customizable options to meet specific laboratory or industrial requirements. With precise controls, robust construction, and dedicated after-sales support, Leads India is a trusted Horizontal Cylindrical Autoclave Manufacturers in Chennai.

Horizontal Cylindrical Autoclave

Cat No LI- HC1624

Specification

CHAMBER Dia 400 X 600mm
Volume 75ltrs
No. of Trays 2 Tray
Power 6
Dimension 650x850x1600mm
Door lock Single
Door: Single door with Radial locking system
Mode of control: With a multiport valve / Automatic Optional
Door: SS Door Wing Nut/ Radial Locking
Pre-vacuum and post vacuum: To eliminate air packs and ensure effective sterilization.
Water protection: In the event of low water the supply to the heaters is discontinued automatically and visually indicated in the control panel.
Pressure switch: An automatic pressure switch adjustable type is provided to set the required pressure.
Vacuum drying: An effective vacuum drying is caused with powerful ejector and vacuum breaker which draws air from the atmosphere. It is filtered, pre-heated(sterilized) and finally enters the working chamber for effective drying.
Water Gauge glass: To note down the level of water glass tube with gauge is provided.
Gasket: Silicon Expansion type
Safety Valve
Vacuum Breaker
Non-Return Valve
Steam Trap
Water Inlet And Water Outlet Valves
The sequence of Automatic operation includes the following:
Automatic water filling for the steam generator
Leak test for required time and results with alarm will be displayed and data logged.
Bowie-did test
Spore-test results from approved lab submitted
Pulsing ( vacuuming, purging and pre-heating)_ Optional
Sterilization with temp and balance time displayed and data logged
Exhaustion appropriate to liquid, instruments and fabric cycles.
Drying cycle with the vacuum pump. – Optional
Final cooling with admission of filtered air (0.2 Micron)
Sterilization completes with F.O values Displayed and data’s logged

Horizontal Cylindrical Autoclave

Cat No LI- HC1644

Specification

CHAMBER Dia 400 X 1100mm
Volume 138ltrs
No. of Trays 2 Tray
Power 9
Dimension 650x1350x1600mm
Door lock Single
Door: Single door with Radial locking system
Mode of control: With a multiport valve / Automatic Optional
Door: SS Door Wing Nut/ Radial Locking
Pre-vacuum and post vacuum: To eliminate air packs and ensure effective sterilization.
Water protection: In the event of low water the supply to the heaters is discontinued automatically and visually indicated in the control panel.
Pressure switch: An automatic pressure switch adjustable type is provided to set the required pressure.
Vacuum drying: An effective vacuum drying is caused with powerful ejector and vacuum breaker which draws air from the atmosphere. It is filtered, pre-heated(sterilized) and finally enters the working chamber for effective drying.
Water Gauge glass: To note down the level of water glass tube with gauge is provided.
Gasket: Silicon Expansion type
Safety Valve
Vacuum Breaker
Non-Return Valve
Steam Trap
Water Inlet And Water Outlet Valves
The sequence of Automatic operation includes the following:
Automatic water filling for the steam generator
Leak test for required time and results with alarm will be displayed and data logged.
Bowie-did test
Spore-test results from approved lab submitted
Pulsing ( vacuuming, purging and pre-heating)_ Optional
Sterilization with temp and balance time displayed and data logged
Exhaustion appropriate to liquid, instruments and fabric cycles.
Drying cycle with the vacuum pump. – Optional
Final cooling with admission of filtered air (0.2 Micron)
Sterilization completes with F.O values Displayed and data’s logged

Horizontal Cylindrical Autoclave

Cat No LI- HC2036

Specification

CHAMBER Dia 500 X 900mm
Volume 176ltrs
No. of Trays 2 Tray
Power 9
Dimension 950x1500x1900mm
Door lock Radial
Door: Single door with Radial locking system
Mode of control: With a multiport valve / Automatic Optional
Door: SS Door Wing Nut/ Radial Locking
Pre-vacuum and post vacuum: To eliminate air packs and ensure effective sterilization.
Water protection: In the event of low water the supply to the heaters is discontinued automatically and visually indicated in the control panel.
Pressure switch: An automatic pressure switch adjustable type is provided to set the required pressure.
Vacuum drying: An effective vacuum drying is caused with powerful ejector and vacuum breaker which draws air from the atmosphere. It is filtered, pre-heated(sterilized) and finally enters the working chamber for effective drying.
Water Gauge glass: To note down the level of water glass tube with gauge is provided.
Gasket: Silicon Expansion type
Safety Valve
Vacuum Breaker
Non-Return Valve
Steam Trap
Water Inlet And Water Outlet Valves
The sequence of Automatic operation includes the following:
Automatic water filling for the steam generator
Leak test for required time and results with alarm will be displayed and data logged.
Bowie-did test
Spore-test results from approved lab submitted
Pulsing ( vacuuming, purging and pre-heating)_ Optional
Sterilization with temp and balance time displayed and data logged
Exhaustion appropriate to liquid, instruments and fabric cycles.
Drying cycle with the vacuum pump. – Optional
Final cooling with admission of filtered air (0.2 Micron)
Sterilization completes with F.O values Displayed and data’s logged

Horizontal Cylindrical Autoclave

Cat No LI- HC2044

Specification

CHAMBER Dia 500 X 1100mm
Volume 216ltrs
No. of Trays 2 Tray
Power 9
Dimension 950x1700x1900mm
Door lock Radial
Door: Single door with Radial locking system
Mode of control: With a multiport valve / Automatic Optional
Door: SS Door Wing Nut/ Radial Locking
Pre-vacuum and post vacuum: To eliminate air packs and ensure effective sterilization.
Water protection: In the event of low water the supply to the heaters is discontinued automatically and visually indicated in the control panel.
Pressure switch: An automatic pressure switch adjustable type is provided to set the required pressure.
Vacuum drying: An effective vacuum drying is caused with powerful ejector and vacuum breaker which draws air from the atmosphere. It is filtered, pre-heated(sterilized) and finally enters the working chamber for effective drying.
Water Gauge glass: To note down the level of water glass tube with gauge is provided.
Gasket: Silicon Expansion type
Safety Valve
Vacuum Breaker
Non-Return Valve
Steam Trap
Water Inlet And Water Outlet Valves
The sequence of Automatic operation includes the following:
Automatic water filling for the steam generator
Leak test for required time and results with alarm will be displayed and data logged.
Bowie-did test
Spore-test results from approved lab submitted
Pulsing ( vacuuming, purging and pre-heating)_ Optional
Sterilization with temp and balance time displayed and data logged
Exhaustion appropriate to liquid, instruments and fabric cycles.
Drying cycle with the vacuum pump. – Optional
Final cooling with admission of filtered air (0.2 Micron)
Sterilization completes with F.O values Displayed and data’s logged

Horizontal Cylindrical Autoclave

Cat No LI- HC2048

Specification

CHAMBER Dia 500 x 1200mm
Volume 235ltrs
No. of Trays 2 Tray
Power 9
Dimension 950 x1800x1900 mm
Door lock Radial
Door: Single door with Radial locking system
Mode of control: With a multiport valve / Automatic Optional
Door: SS Door Wing Nut/ Radial Locking
Pre-vacuum and post vacuum: To eliminate air packs and ensure effective sterilization.
Water protection: In the event of low water the supply to the heaters is discontinued automatically and visually indicated in the control panel.
Pressure switch: An automatic pressure switch adjustable type is provided to set the required pressure.
Vacuum drying: An effective vacuum drying is caused with powerful ejector and vacuum breaker which draws air from the atmosphere. It is filtered, pre-heated(sterilized) and finally enters the working chamber for effective drying.
Water Gauge glass: To note down the level of water glass tube with gauge is provided.
Gasket: Silicon Expansion type
Safety Valve
Vacuum Breaker
Non-Return Valve
Steam Trap
Water Inlet And Water Outlet Valves
The sequence of Automatic operation includes the following:
Automatic water filling for the steam generator
Leak test for required time and results with alarm will be displayed and data logged.
Bowie-did test
Spore-test results from approved lab submitted
Pulsing ( vacuuming, purging and pre-heating)_ Optional
Sterilization with temp and balance time displayed and data logged
Exhaustion appropriate to liquid, instruments and fabric cycles.
Drying cycle with the vacuum pump. – Optional
Final cooling with admission of filtered air (0.2 Micron)
Sterilization completes with F.O values Displayed and data’s logged

Horizontal Cylindrical Autoclave

Cat No LI- HC2436

Specification

CHAMBER Dia 600 X 900mm
Volume 254ltrs
No. of Trays 2 Tray
Power 12
Dimension 1050x1500x1900mm
Door lock Radial
Door: Single door with Radial locking system
Mode of control: With a multiport valve / Automatic Optional
Door: SS Door Wing Nut/ Radial Locking
Pre-vacuum and post vacuum: To eliminate air packs and ensure effective sterilization.
Water protection: In the event of low water the supply to the heaters is discontinued automatically and visually indicated in the control panel.
Pressure switch: An automatic pressure switch adjustable type is provided to set the required pressure.
Vacuum drying: An effective vacuum drying is caused with powerful ejector and vacuum breaker which draws air from the atmosphere. It is filtered, pre-heated(sterilized) and finally enters the working chamber for effective drying.
Water Gauge glass: To note down the level of water glass tube with gauge is provided.
Gasket: Silicon Expansion type
Safety Valve
Vacuum Breaker
Non-Return Valve
Steam Trap
Water Inlet And Water Outlet Valves
The sequence of Automatic operation includes the following:
Automatic water filling for the steam generator
Leak test for required time and results with alarm will be displayed and data logged.
Bowie-did test
Spore-test results from approved lab submitted
Pulsing ( vacuuming, purging and pre-heating)_ Optional
Sterilization with temp and balance time displayed and data logged
Exhaustion appropriate to liquid, instruments and fabric cycles.
Drying cycle with the vacuum pump. – Optional
Final cooling with admission of filtered air (0.2 Micron)
Sterilization completes with F.O values Displayed and data’s logged
