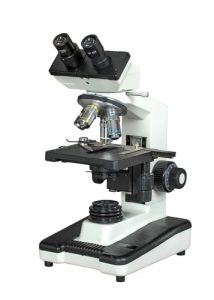

A binocular microscope is a sophisticated optical instrument that incorporates two eyepieces,
which makes it the best optical instrument in terms of detailed observation, long-term
observation, and work in a laboratory. We are also Binocular Microscope Manufacturers in
Chennai, and we make sure to offer you good-quality microscopes that are of superb quality
as far as clarity, durability, and comfort are concerned. Our microscopes have made schools,
colleges, research labs, and even medical institutions look upon them as a source of accurate
and convenient microscopy solutions.
Significance of the Binocular Microscopes
● Dual Eyepiece Design: This design minimizes eye strain with long-term viewing and
provides comfortable viewing on both eyes.
● Improved Magnification: Gives a clear and accurate view of biological specimens,
slides, and samples to be studied in detail.
● Ergonomic and User-Friendly: It is to be handled easily during the long laboratory
sessions.
● Durable Construction: Construction is designed to undergo repeated use in an
educational, clinical, and research environment.
● Cost-Effective: It has advanced features at a cost-effective price, which can be used
by institutions and labs that are interested in reliable microscopy solutions.
Applications
● School and college education in higher studies of biology.
● Professional research and laboratory testing.
● Biological and clinical specimens observation.
● Regular check-ups and laboratory tests.
● Simple and advanced laboratory facilities.
Why Choose Us?
Being one of the largest Binocular Microscope Manufacturers in Chennai, we offer
instruments that are accurate, strong, and easy to use. Strict checking of quality is done on
each microscope to guarantee accuracy, stability, and dependability. We also provide
professional advice, technical assistance, and post-sales service to assist institutions in
maximizing their microscopy equipment.
Empowering Research and Education
We have binocular microscopes that are aimed at helping in learning, arranging precise
observations, and ensuring reliable operation. Schools, colleges, medical laboratories, and
researchers, by selecting our microscopes, acquire instruments of quality which make the
study of biology, medicine, and research uses easy without causing discomfort and
inaccuracy to users.
Specification
- Illumination Incorporates Led Lamp With Adjustable Iris Diaphragm
- Condenser NA 1. 25 Having a Spherical Lens
- Focusing Slow Motion 1DIV=0.002 mm
- Camera Attachable camera 1/2n ccd, 2.0 mp (1600×1280) with USB 2.0 PC. Output 28 mm, 30 mm, 34mm, and 35 mm
- Interpupillary Distance Adjustable 55-75 mm
- Objectives Plan achromatic 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 (SL) and 100x/NA 1.25 (SL) oil
- Observation Head 30 Degree Inclined, 360 Degree Rotatable
- Stage Size 125×135 mm
Specification
BASE
- Single mold sturdy stand with anti rust materials and extended base.
- BINOCULAR OBSERVATION HEAD
- Binocular Observation head inclined at 45o rotatable at 360
- EYEPIECE
- KEOWA WIDE FIELD HKW 10x paired with eye guards.
- OBJECTIVES
- KEOWA Semi Plan Achromatic Objectives, anti-fungus treated
- 4x/NA 0.10
- 10x/NA 0.25
- 40x/NA 0.65 (Spring Loaded)
- 100x/NA 1.25 (SL, oil immersion)
- NOSEPIECE
- Quadruple nosepiece revolves on ball bearing with rubber grip and positive click stop.
- MECHANICAL STAGE
- Right Hand Mechanical stage size 120mm X 140mm having low positioned co-axial controls on ball bearing. Spring clip single specimen holder
- Cross X&Y movement 60mm X 80mm.
- FOCUSSING SYSTEM
- Low position Co-axial graduated coarse & fine focusing system with
- TENSION ADJUSTMENT RING provides a soft and sophisticated touch to the microscope.
- SUB STAGE CONDENSER
- Focusable Abbe Condenser centerable NA 1.25 with aspheric lens, filter holder, Iris Diaphragm movable on rack & pinion with BLUE filter. Vertical adjustment range: 10mm.
- ILLUMINATION
- Built-in-base illumination system with 6V 20W Halogen lamp or 3W LED lamp with intensity controlled power supply & day light reflector/mirror.
Specification
- OPTICAL SYSTEM:
- Infinity Optical System.
- STAND:
- C shaped, Single Mould corrosion resistant, Anti mould treated stand with modular base.
- VIEWING BODIES:
- Ergonomic Tiltable Binocular tube, tilting angle 0-45degree, IPD 55-75mm, with Dioptric adjustment on left ocular.
- EYEPIECES:
- Focusable widefield eyepiece 10x/22mm with foldable eye guard, antifungal.
- OBJECTIVES:
- IP series Infinity DIN PLAN Achromatic, Anti fungus treated, 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL. 100x (Oil, SL). Optional 20x/ NA 0.40 SL, 60x/NA 0.85 SL
- STAGE:
- Rackless X axis, double plate stage size 222 x 160mm, X/Y travel range 78mm x 54mm.Low drive right hand movement controls. Double specimen holder.
- FOCUSING MODULE:
- Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways. Tension adjustment ring.
- NOSEPIECE:
- Quadruple, Revolving Inward Facing Nosepiece with soft Knurled grip
- CONDENSER:
- Movable ABBE condenser, with aspheric lens NA 1.25 & Iris diaphragm. Center able.
- ILLUMINATION:
- Koehler Illumination, Super Bright White LED cold Light.
